VCB PANEL

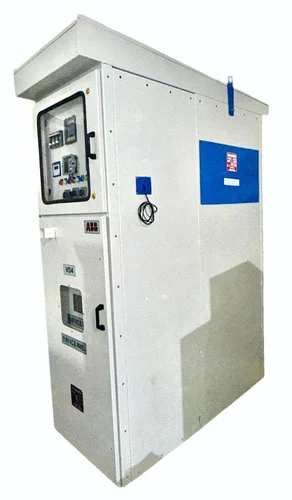

RuncoN VCB Panel (Vacuum Circuit Breaker Panel) is a high-voltage switchgear panel that uses a Vacuum Circuit Breaker (VCB) to protect and control electrical systems.

What It Does

1. Switch ON/OFF electrical circuits
2. Interrupt fault currents (short circuit, overload)
3. Protect transformers, motors, and feeders

Working Principle

The VCB operates using vacuum as the arc quenching medium. When contacts open, an arc forms. In vacuum, there is no ionized medium, so the arc extinguishes quickly, making interruption fast and efficient.

Step-by-Step Working

1. Normal Condition: Breaker is closed and current flows normally.
2. Fault Occurs: Overcurrent or short circuit is detected by the relay.
3. Tripping: Protection relay sends a signal to the VCB.
4. Arc Interruption: Contacts open and the arc is extinguished in vacuum.
5. Isolation: Faulty section is disconnected safely.

Main Components

1. Vacuum Circuit Breaker (VCB)
2. Protection relays
3. Current Transformers (CTs)
4. Potential Transformers (PTs)
5. Busbars
6. Control and protection wiring
7. Panel enclosure

Typical Ratings

Applications

1. Distribution substations
2. Industrial plants
3. Transformer protection
4. Motor feeders
5. Capacitor banks (HT APFC panels)
