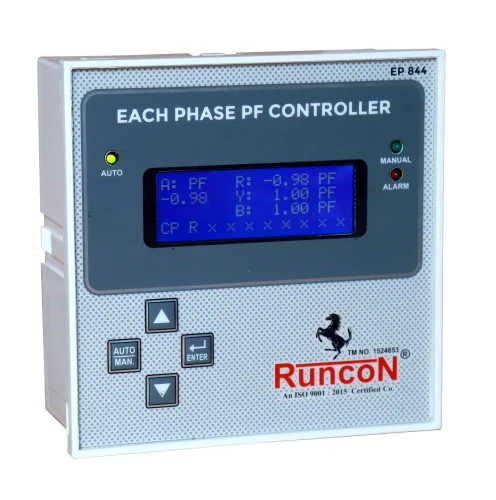

MODEL No EP-844
Each Phase Power Factor Controller specially designed for unbalanced loads. Works for both single & three phase systems, maintaining power factor separately for each phase (R, Y, B).
Key Features
- Unbalanced Load Support: Specially designed for unbalanced loads (e.g. R Phase 50A, Y Phase 20A, B Phase 10A).
- Per-Phase Control: Maintains power factor for R Phase, Y Phase, and B Phase independently.
- Display: 20×4 LCD Display with Backlight showing 3-phase Voltage, Current, KW, KVA, PF, KVAR, Hz.
- Alarm: On-screen alarm display for Over Voltage, Under Voltage, and Phase Fail.
- Security: Easy installation with Password Protection.
- No Programming Required: Plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 16 + 1 (R – 8 / Y – 4 / B – 4 / 1 Alarm) |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | 0.999 |
| System | Single & Three Phase |

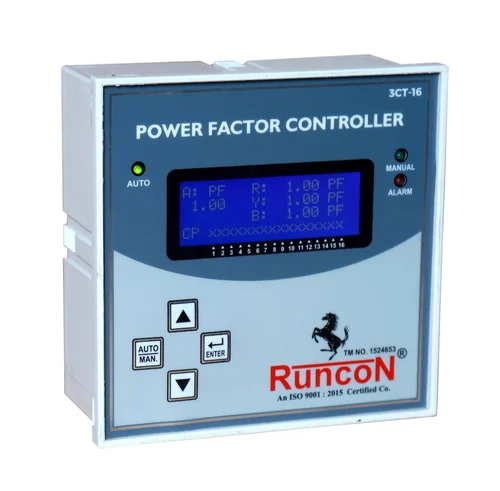

MODEL No 3CT-16
Three CT APFC Controller with 16 Stage + 1, featuring a 20×4 LCD display showing complete three-phase electrical parameters with alarm protection.
Key Features
- Display: 20×4 LCD Display with Backlight showing 3-phase Voltage, Current, KW, KVA, PF, KVAR, Hz.
- Alarm: On-screen LED alarm for Over Voltage and Under Voltage.
- Security: Easy installation with Password Protection.
- No Programming Required: Plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 16 + 1 |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | 0.999 |

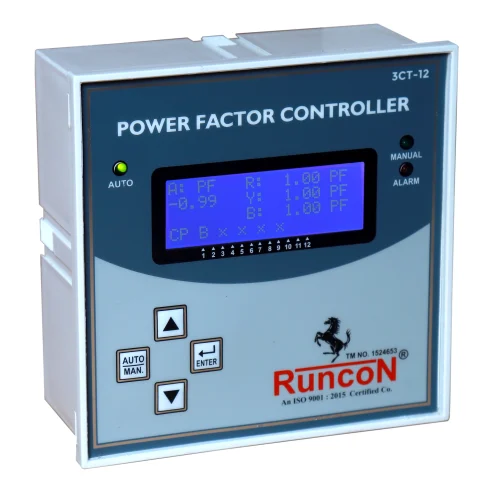

MODEL No 3CT-12
Three CT APFC Controller with 12 Stage + 1, featuring a 20×4 LCD display showing complete three-phase electrical parameters with alarm protection.
Key Features
- Display: 20×4 LCD Display with Backlight showing 3-phase Voltage, Current, KW, KVA, PF, KVAR, Hz.
- Alarm: On-screen alarm for Over Voltage, Under Voltage, and Phase Fail.
- Security: Easy installation with Password Protection.
- No Programming Required: Plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 12 + 1 |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | 0.999 |

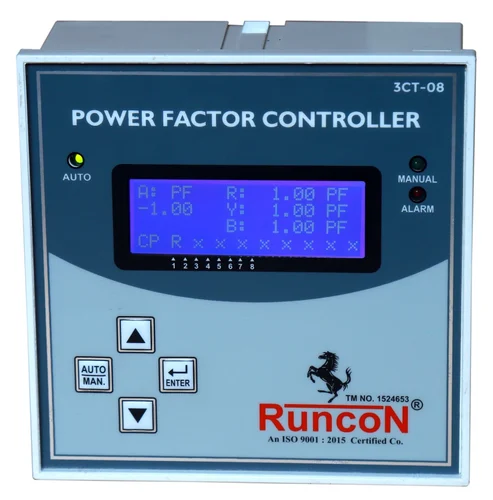

MODEL No 3CT-08
Three CT APFC Controller with 8 Stage + 1, featuring a 20×4 LCD display showing complete three-phase electrical parameters with alarm protection.
Key Features
- Display: 20×4 LCD Display with Backlight showing 3-phase Voltage, Current, KW, KVA, PF, KVAR, Hz.
- Alarm: On-screen alarm for Over Voltage, Under Voltage, and Phase Fail.
- Security: Easy installation with Password Protection.
- No Programming Required: Plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 8 + 1 |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | 0.999 |

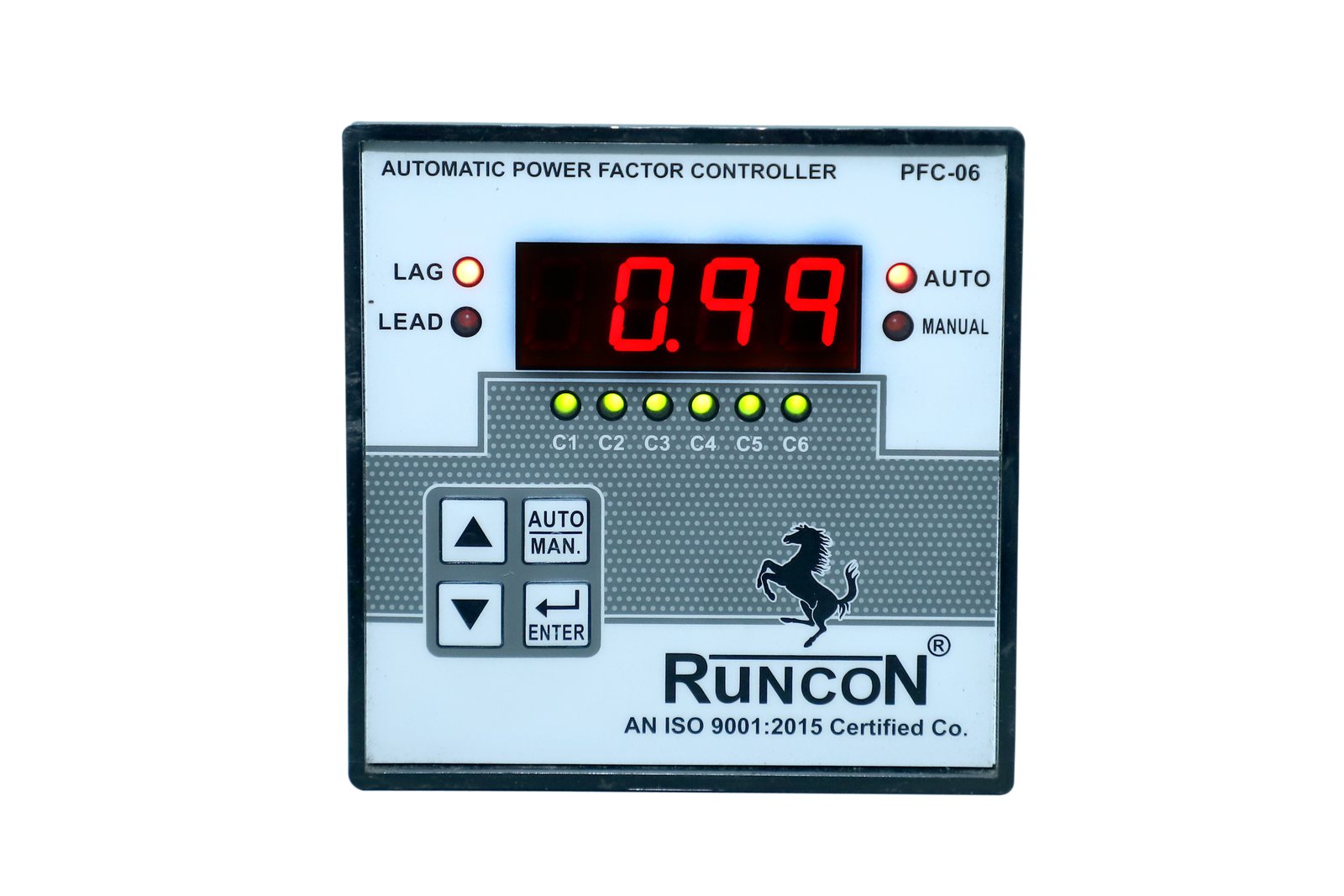

MODEL No PFC-06
6 Stage APFC Controller with digital FND display. Compact front panel mounting unit with plug-in terminal connection, supporting both auto and manual modes.
Key Features
- Display: Digital FND Display.
- Modes: Auto and Manual mode.
- Settable Parameters: Number of relays, step time, discharge time.
- No Programming Required: Plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 6 |
| Size | 96mm × 96mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Power Factor Accuracy | ± 0.01 |

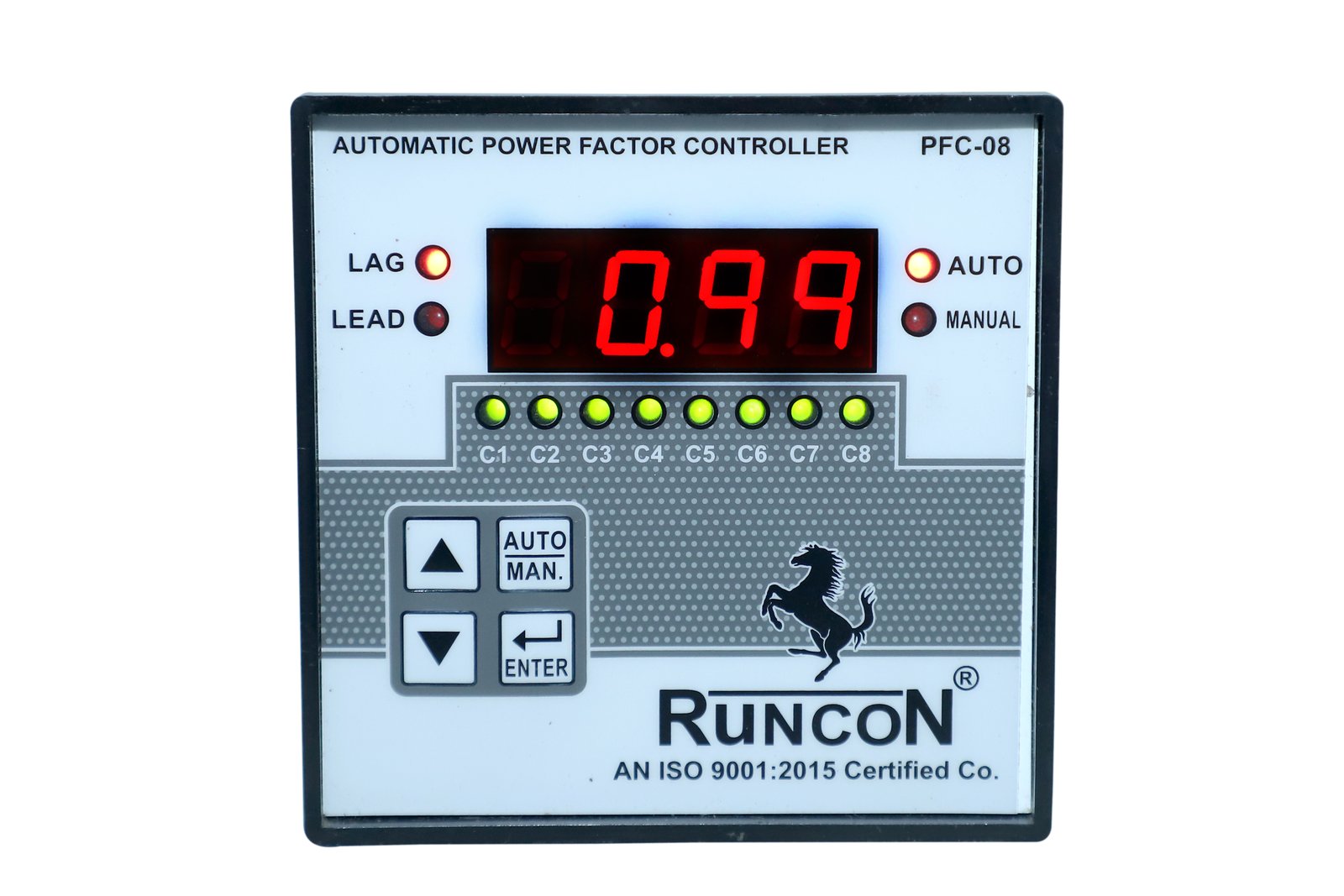

MODEL No PFC-08
8 Stage APFC Controller with digital FND display. Compact front panel mounting unit with plug-in terminal connection, supporting both auto and manual modes.
Key Features
- Display: Digital FND Display.
- Modes: Auto and Manual mode.
- Settable Parameters: Number of relays, step time, discharge time.
- No Programming Required: Plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 8 |
| Size | 96mm × 96mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Power Factor Accuracy | ± 0.01 |

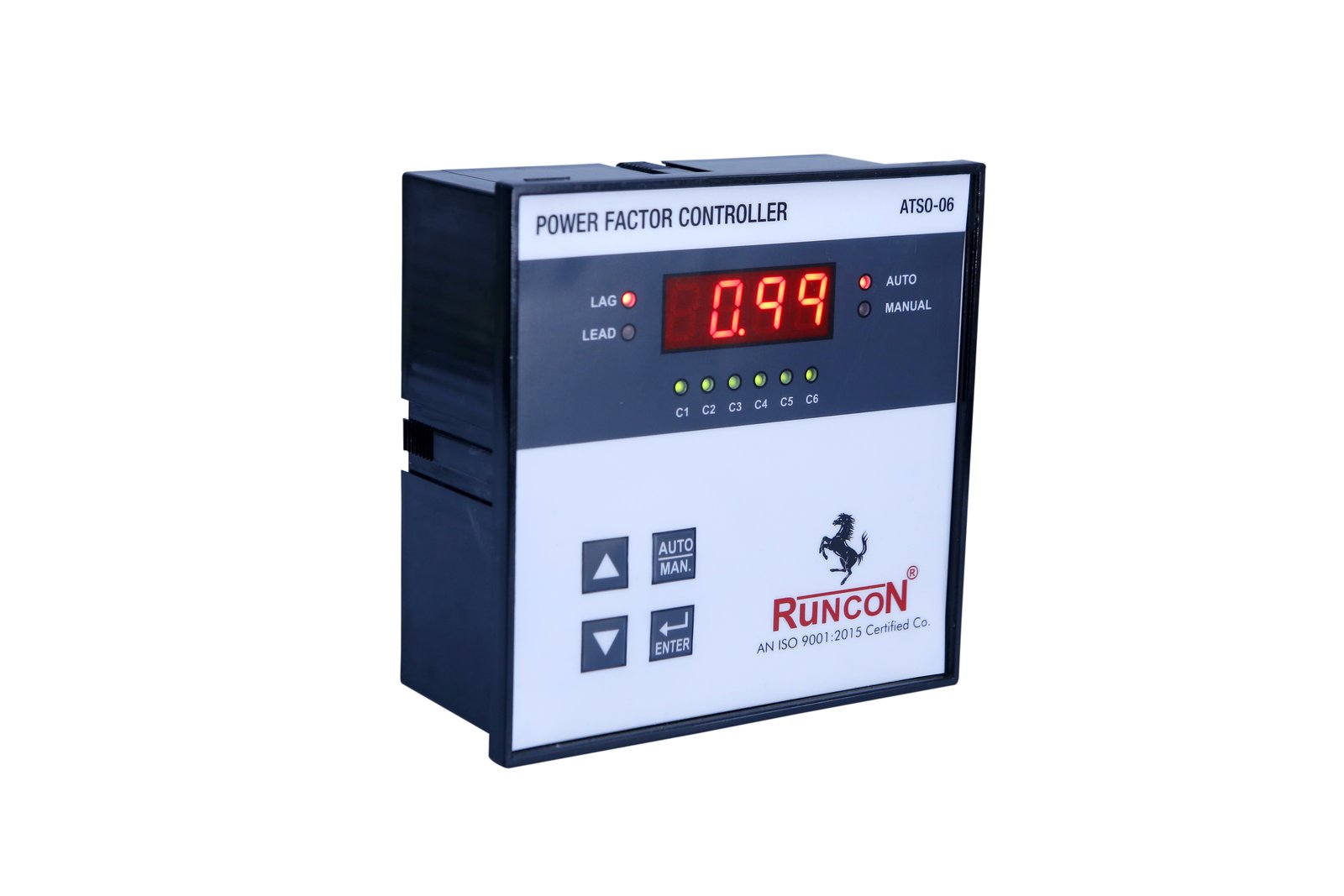

MODEL No ATSO-06
6 Stage APFC Controller with plug and play design. Larger 144mm panel unit with digital FND display, supporting both auto and manual modes.
Key Features
- Display: Digital FND Display.
- Modes: Auto and Manual mode.
- Settable Parameters: Number of relays, step time, discharge time.
- Plug and Play: No programming required, plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 6 |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | ± 0.01 |

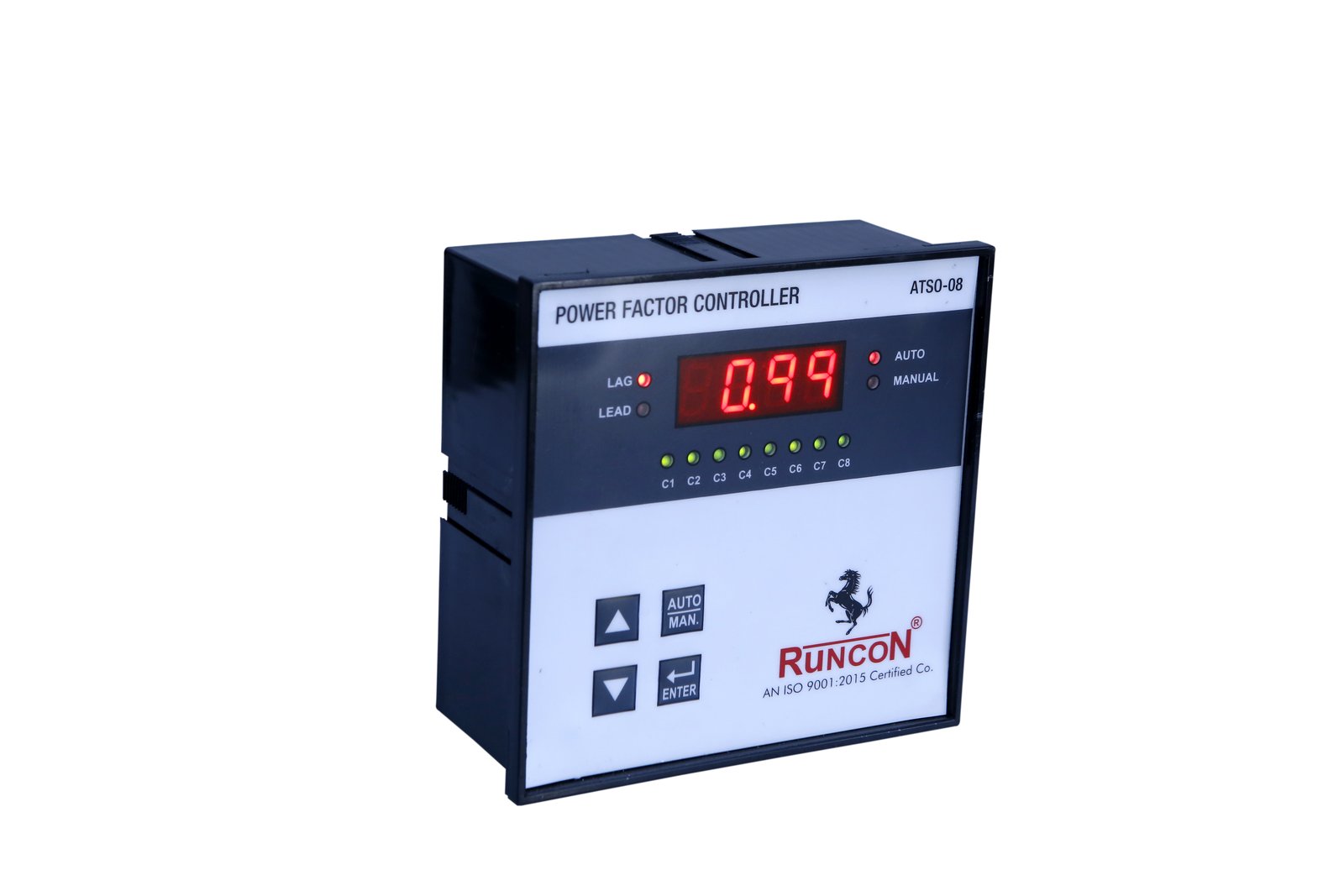

MODEL No ATSO-08
8 Stage APFC Controller with plug and play design. Larger 144mm panel unit with digital FND display, supporting both auto and manual modes.
Key Features
- Display: Digital FND Display.
- Modes: Auto and Manual mode.
- Settable Parameters: Number of relays, step time, discharge time.
- Plug and Play: No programming required, plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 8 |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | ± 0.01 |

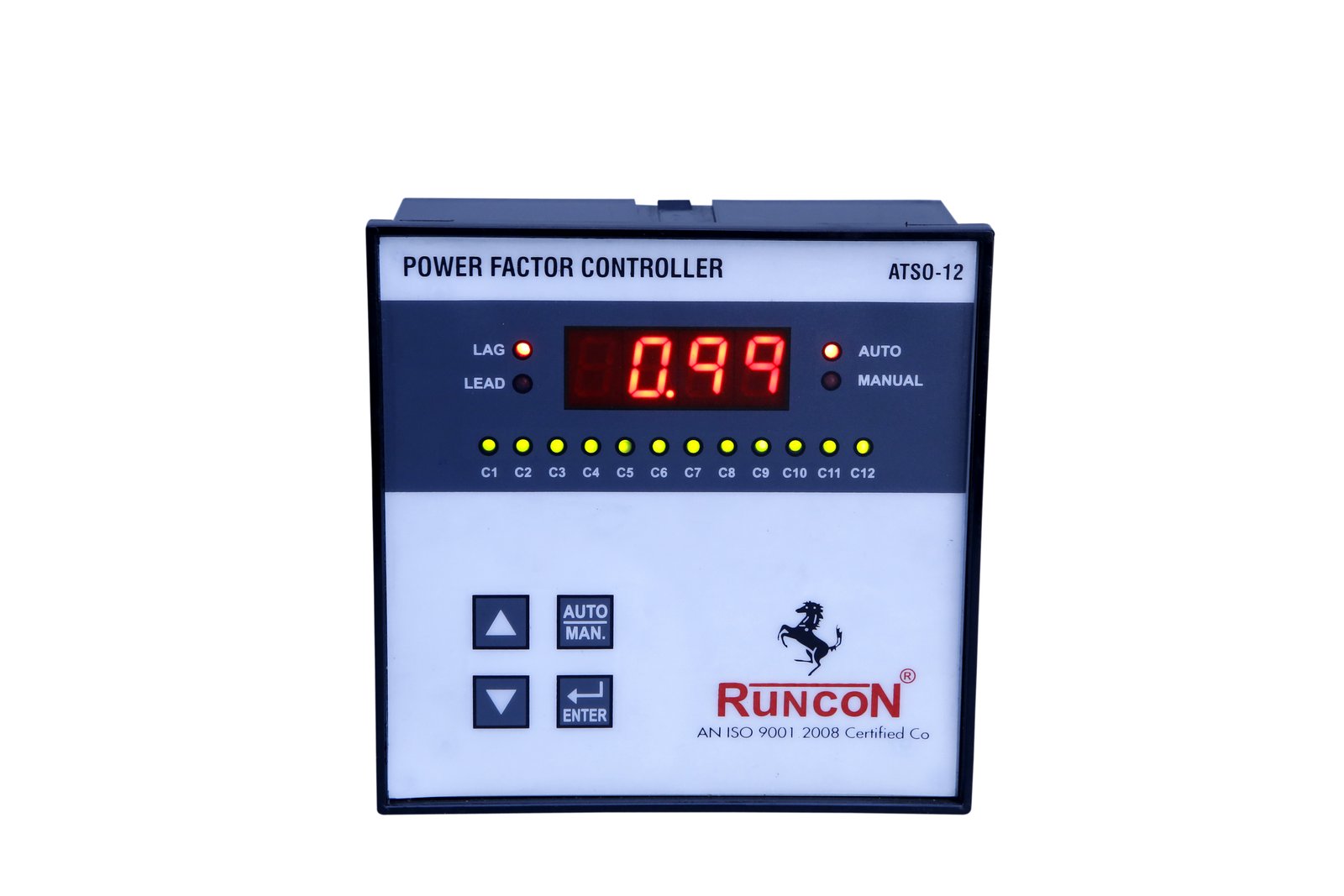

MODEL No ATSO-12
12 Stage APFC Controller with plug and play design. Larger 144mm panel unit with digital FND display, supporting both auto and manual modes.
Key Features
- Display: Digital FND Display.
- Modes: Auto and Manual mode.
- Settable Parameters: Number of relays, step time, discharge time.
- Plug and Play: No programming required, plug-in terminal connection, front panel mounting.
Specifications
| Parameter | Value |
|---|
| Stages | 12 |
| Size | 144mm × 144mm |
| Input Voltage Range | 170 VAC – 270 VAC |
| Working Temperature | -10°C to 70°C |
| Power Factor Accuracy | ± 0.01 |
