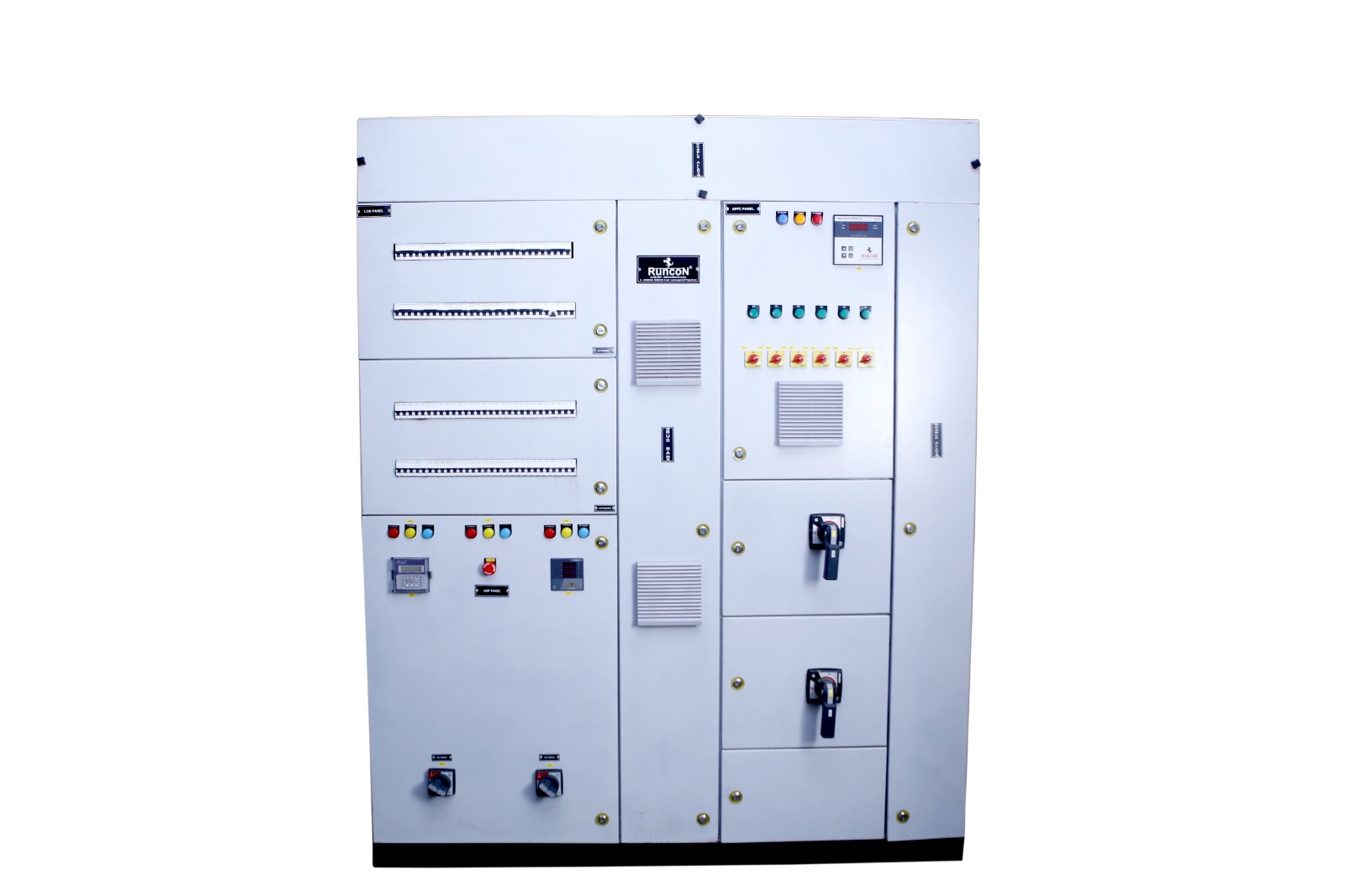

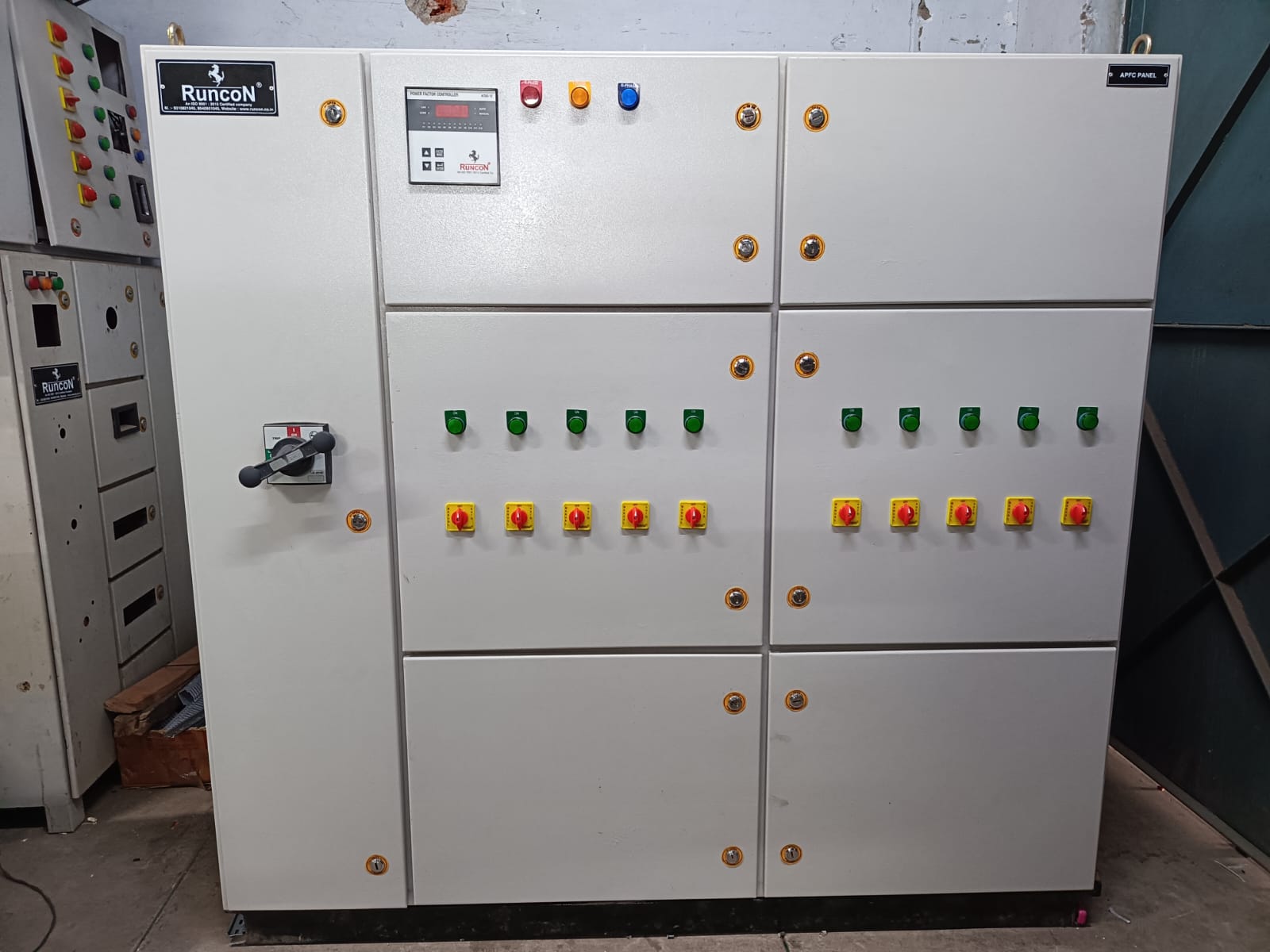

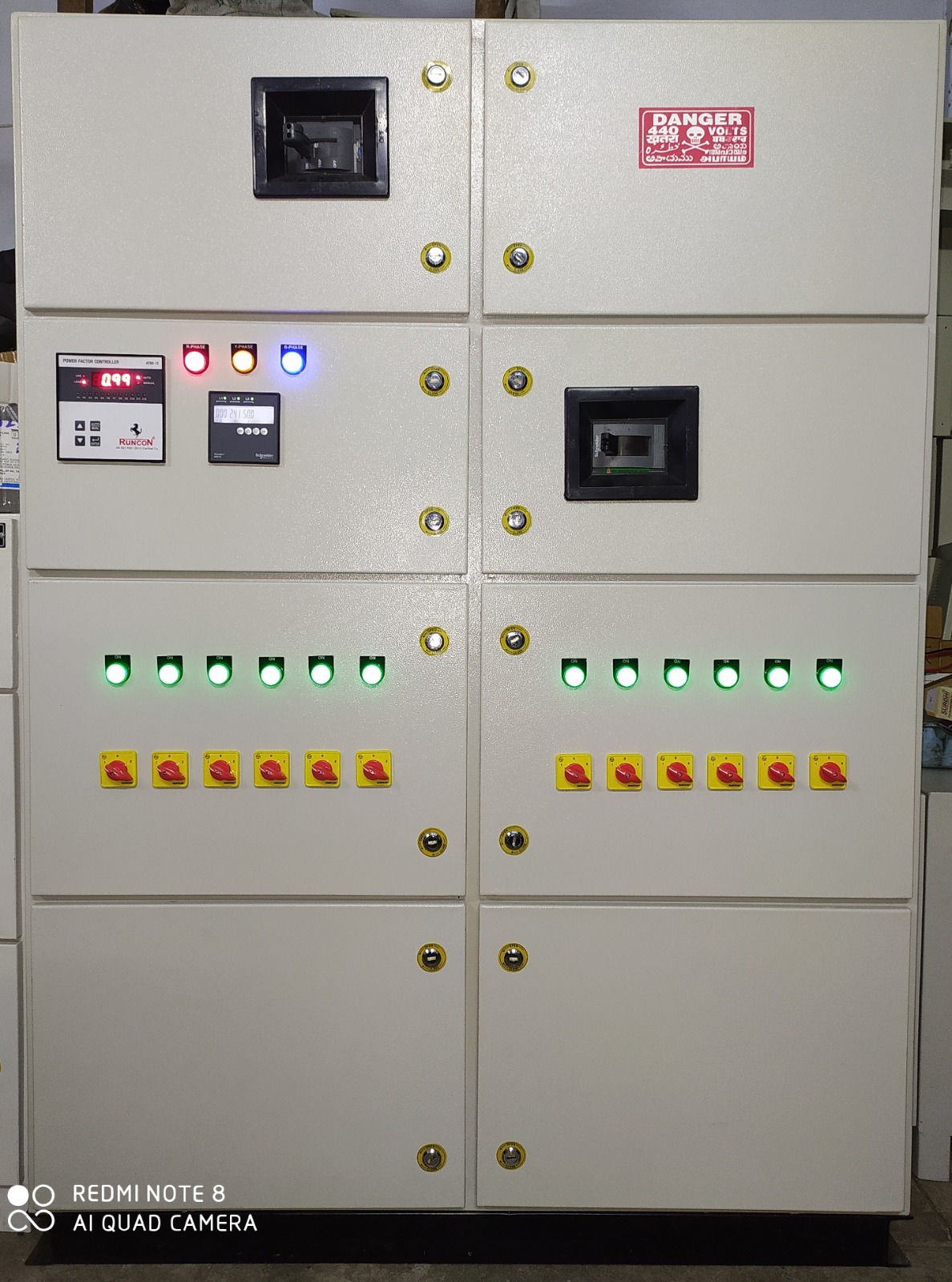

Automatic Phase Sequence Corrector Panel

RuncoN Phase Sequence Corrector Panel is a specialized electrical panel designed to detect and correct the phase sequence of a three-phase power supply. Proper phase sequence is critical for the safe and efficient operation of three-phase equipment like motors, pumps, and compressors. If the sequence is incorrect, it can cause motors to run in reverse, leading to operational issues or serious equipment damage.

RuncoN panels use cutting-edge technology and innovative design to ensure reliable, durable, and energy-efficient phase correction — trusted across manufacturing, healthcare, data centers, and commercial buildings.

Key Features of a Phase Sequence Corrector Panel

Each RuncoN Phase Sequence Corrector Panel is built with precision-grade components to automatically detect, alarm, and correct phase sequence anomalies before they can cause damage to connected three-phase equipment.

1. Main Components

Phase Sequence Relay

Detects the incoming supply sequence (R-Y-B) and identifies any phase reversal or incorrect ordering in real time.

Correction Mechanism

Employs automatic or manual switching of phases to restore the correct R-Y-B sequence to the connected load.

Contactors / Relays

Perform the actual phase switching operations to correct the sequence quickly and reliably without interruption.

Indication & Alarms

Visual LED indicators and audible alarms immediately alert operators of phase sequence errors or loss of phase conditions.

Overload & Short-Circuit Protection

Built-in protection safeguards the panel and all connected equipment against overloads, faults, and short-circuit events.

Control Transformer

Provides stable low-voltage control signals for relay operations, indicator lamps, and panel logic circuits.

2. Working Principle

Detection

The phase sequence relay continuously monitors the incoming three-phase power supply, checking for the correct R-Y-B sequence and detecting any phase reversal, single phasing, or voltage imbalance.

Correction

If an incorrect phase sequence or phase failure is detected, the panel immediately initiates corrective action by switching the phases via contactors to restore the correct sequence, while triggering visual and audible alarms.

Restoration

Once the correct phase sequence is confirmed and restored, the system automatically allows power to flow to the connected load — ensuring motors, pumps, and compressors resume operation in the correct direction.
